Product Summary
KYN61-40.5 Air insulated metal-clad movable switchgear is an indoor switchgear,assembly operating under the Conditions of 50/60Hz three phase and rated 40.5kV AC voltage,which applied to the transmission and distribution for generators,transformer substations and the industry and mine enterprises.It also can be used to control, protect and monitor electric circuits, and very useful to frequent operating conditions. It complies with GB/T11022, GB/T3906, DL/T404 and other relative standards.
Environmental Conditions
1.Ambient Temperature: No more than +40℃ and no less than -15C. Average temperature is no more than +35℃ within 24 hours.
2.Altitude: No more than 1000m.
3.Relative Humidity: the average daily value is no more than 95%, the average monthly value is no more than 90%.
4.Earthquake Intensity: No more than 8 degrees.
5.Vapor pressure; average daily value is no more than 2.2kPa, average monthly value is no more than 1.8kPa.
6.Installation locations without fire, explosion danger, serious pollution, chemical corrosion and violent vibration.
Product Features
1.The cabinets and partition board adopting hot-dip AI-Zn allo-coated steel sheet and frame adopting assembled structure makehigh overall intensity and good earth continuity.
2.The cabinet is combined type and the handcart of breaker is floor structure type.
3.The new composite insulating vacuum circuit breaker has the characteristics of interchangeability and simple replacement.
4.The handcart adopts screw propulsion mechanism, which moves the handcart easily and prevent mis operation to damage thepropulsion mechanism.
5.All the operations could be done when the cabinet door is closed.
6.The interlocking between the main switch, the handcart and the switch cabinet adopts the mandatory mechanism of mechanicallocking,meeting the functions of five- preventions.
7.The cable room is spacious and can be connected to a number of cables.
8.The degrees of protection is IP4X, which effectively prevents the equipme

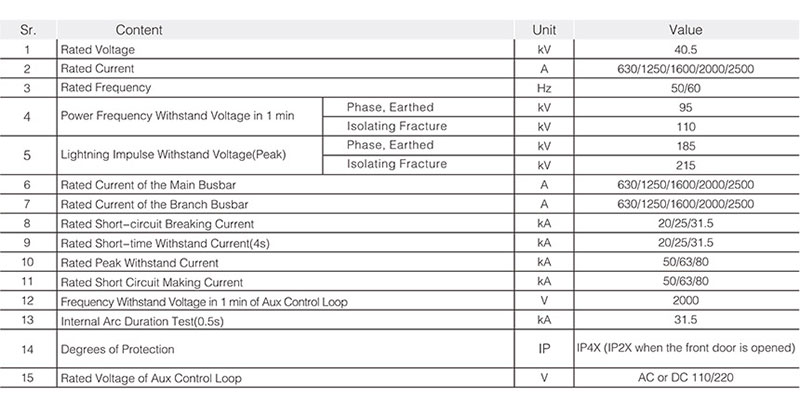

Technical Parameters
Schematic diagram of structure
