product description

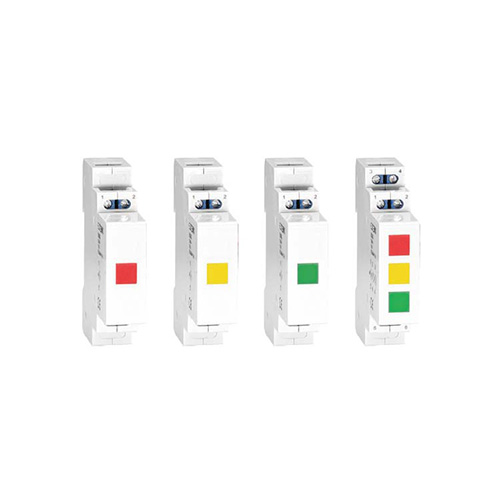

EKSL1, EKSL3 Modular Signal Lamp
Construction and Feature
Low service duration,minimum power consumption,Compact design in modular size,Easy installation
Technical Data
| 230VAC,100VAC,48VAC/DC,24VAC/DC | |
| 50/60Hz | |
| EKSL1Red,green,yellow | |
| EKSL3Red/Green/Yellow,Red/Green/Blue | |
| Pillarterminalwithclamp | |
| Connectioncapacity | 2 |
| Rigidconductor1.5mm | |
| OnsymmetricalDINrail35mm | |
| Panelmounting |
Circuit Diagram
Application
The Modular Signal Lamp is applicable to circuit with rated voltage 230V~and frequency 50/60Hz for visual
EKM1-63S 4.5KA Miniature Circuit Breaker
Electrical Features
| Rated current In | 1,2,3,4,5,6,8,10,13,16,20,25,32,40,50,63A |
| Poles | 1P, 1P+N, 2P, 3P, 3P+N,4P |
| Rated voltage Ue | 240/415V |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4,500A |
| Energy limiting class | 3 |
| Rated impulse withstand voltage(1.5/50) Uimp | 4,000V |
| Dielectric test voltage at ind. Freq. for 1 min | 2kV |
| Pollution degree | 2 |
| Thermo-magnetic release characteristic | B,C,D |
Mechanical Features
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Reference temperature for setting of thermal element | 30℃ |
| Ambient temperature (with daily average≤35℃) | -5℃~+40℃ |
| Storage temperature | -25℃~+70℃ |
Tripping characteristics
Based on the Tripping Characteristics, MCB are available in“B”,“C”and“D”curve to suit different types of applications.
“B”Curve for protection of electrical circuits with equipment that does not cause surge current (lighting and distribution circuits) Short circuit release is set to (3-5)In.
“C”Curve for protection of electrical circuits with equipment that cause surge current (inductive loads and motor circuits) Short circuit release is set to (5-10)In.
“D”Curve for protection of electrical circuits with cause high inrush current ,typically 12-15 times the thermal rated current (transformes, x-ray machines etc,)Short circuit release is set to (10-20)In.
Overall and Installation Dimension(mm)
