LW30 Rotary Changeover Switch
Introduction
■LW 30 series Isolation switches applied to circuits ofAC 50Hz with working voltage up to 440V and rated working current up to 100A.
■LW 30 is suitable to control :air-conditioner, water pump and ventilating equipments, and AC Motors with small power.
■LW 30 series rotary switches have 7 current ratings: 20A,25A,32A,40A,63A,80A,and 100A.
■LW 30 series has the finger protection terminals, which offers an extra advantage.
■LW 30series switches has larger insulation distance, quick disconnecting response . And is a good choice For DC circuits, LW 30 has additional contact which enable us to install the contact separetely
■LW 30 series rotary switches comply with :IEC60947-3.
Working conditions
■ Ambient temperature do not exceed 40C, and the average temperature, measured over a
period of 24 hours, do not exceed 35C .
■ Ambient temperature should not be below -25C.
■ Should Not be installed over 2000m above sea level.
■ The humidity should not exceed 50% when the ambient temperature is 40C and higher humidity is allowed for lower temperature.
Installation conditions
■ A clean environments is required.
■ Please follow our manual
Accessorial code
Number of poles :3P,4P
Additional contacts :0 for additional contacts not inclosed , 1 for with additional contacts
Neutral terminal:0 for neutral terminal not inclosed, 1 for with neutral terminal
Earthing terminal: 0 for earthing terminal not inclosed，1 for with earthing terminal.

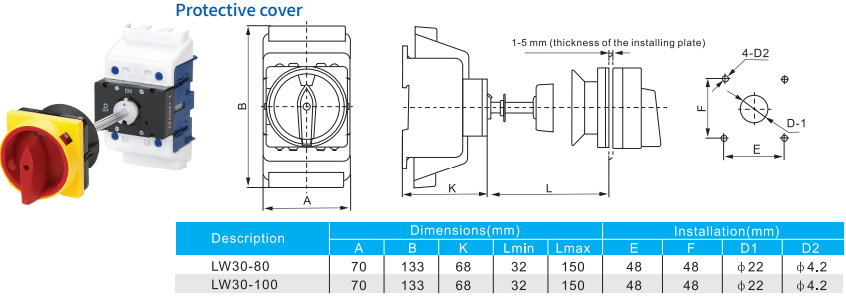

Installation
1.Pad-lock escutcheon plate
2. Escutcheon plate
3. Single lock parallel installation
4.Doorlock safety switch with padlock system
5. Single hold installation
Type of box :0 without protective box, 1 with IP65 Plastic box
