JDZ (X) 8-35W outdoor voltage transformer

Designation

Overview

The product is made of outdoor epoxy resin casting and insulation,fully-operated voltage transformer,with strong weather resistance, etc. It is suitable for outdoor AC 50-60Hz rated voltage 35kV power system. doing voltage,energy measurement and succession.Electrical protection is used.

The main technical parameters

Product standard GB 1207-2006 and I EC60186;
Pollution level: Grade IV;
Load power factor: COS∅= 0.8 (hysteresis);
Altitude:S:4000m

Structural features

This type of transformer is a pillar structure. It is fully enclosed and casted with outdoor epoxy resin. It has the characteristics of arc resistance, ultraviolet radiation resistance, aging resistance and long life. It is an ideal replacement for outdoor oil immersed transformers.
The product is fully enclosed and insulated for moisture resistance. There is a junction box at the secondary outlet end, and a cable outlet hole is provided below it, which is safe and reliable. There are 4 mounting holes on the base channel steel for any position and installation in any direction.

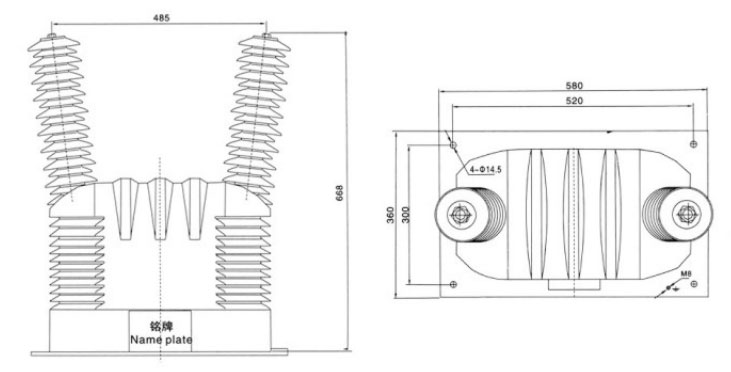

Outline and installation dimension drawing
