CGW5 Outdoor Disconnecting switch

Short Description:

CGW5 outdoor disconnect switch is an outdoor H.V.Circuit electric applicance in AC 5OHz,rated voltage 40.5kV,72.5kV and 126kV.it can be used for H.V. Circuit making under no— load condition and electric— disconnecting in inspection of HV. Gereratrix,applicances as circuit breaker and live H.V. Wire.also,it can be used to make small capacitance or inductive current.

Product Detail

Product Tags

cgw5 outdoor disconnecting switch 1

General Description

CGW5 outdoor disconnect switch is an outdoor H.V.Circuit electric applicance in AC 5OHz,rated voltage 40.5kV,72.5kV and 126kV.it can be used for H.V. Circuit making under no— load condition and electric— disconnecting in inspection of HV. Gereratrix,applicances as circuit breaker and live H.V. Wire.also,it can be used to make small capacitance or inductive current.

Type And Meanings

cgw5 outdoor disconnecting switch 2

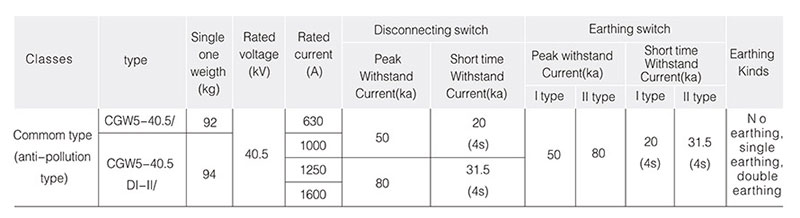

Main technical parameter

cgw5 outdoor disconnecting switch 3

Structure Characteristics

Each unipolar equipment is firmed in a base with two post insulatorsshaping a V with intersection 50.the main structures as below:base ,post insulator,terminal base.contact.earthing switchearthing static contact And cable terminal.
This switch is sorted by earthing—free,single earthing and double earthi ng.there is a mechanical interlocking between main principal Axis and earthing switch.it is equipped with an auxiliary switch.it has manual and automatical operation ways.

Features

a.making current freely.turning flexibility due to rolling bearing,which leading to operational labor saving.

b.it is transmitted b bevel gear to make the two pillars making current consisitently.

c.the opening and closing brake has limited switch to ensure the contactors at the best position.meanwhile.the handie wiii be ouciea by lock ring after operation.

d.big clearance between open contacts.sufficient insulating and disconnecting fracture to ensure the operation safety.

e.it has earthing—free,single earthing and double earthing.there is a reliable mechanical inter locking between principal axis and earthing to ensure safety.users can choose the earthing way accordingly.

f.operation mechanism can be installed under either pole according to users.the operating effects are same.

Dimensions Shown In Fig .1 Tn—pole Linkage Installation In Fig.2

cgw5 outdoor disconnecting switch 4

Outline and installation dimensions

19.Sring washer

20 Screw

21 .joint

22.channel steel (self prepared by users)

23.channel steel 1O(for reference self prepared by users)

24.beam clamp (self prepared by users)

25.water gas pipeline(diameter of 40mm,self prepared by users)

26.angle 6363 6(220MM)

27angle 63636(180MM)

cgw5 outdoor disconnecting switch 5

CS17 I manual operation mechanism (no earthing)

CS17 II manual operation mechanism(single earthing)

CS17 Ill manual operation mechanism (double earthing)

Main knife handles at the closing position

Main knife handles at the opening position

Earthing switch at the closing position

Earthing switch at the opening position
